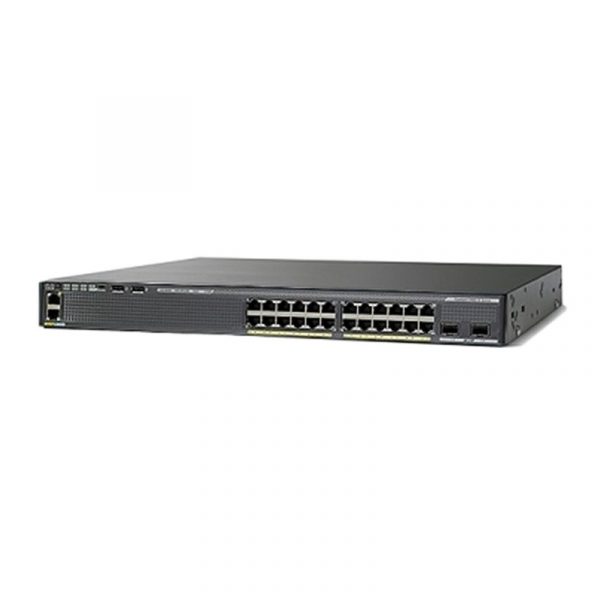

Cisco catalyst 2960XR-24PS-L IP Lite Base layer 2 – 3 stackable switch is comprised of 24 * 10/100/1000 Ethernet ports with POE+ and 4 SPF uplink interfaces. IP Lite Image enables basic access layer 3 routing features, such as RIPV1, V2, OSPF stub, EIGRP stub, HSRP, VRRP, PIM stub, etc.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | WS-C2960XR-24PS-I |
| Enclosure Type | Rack-mountable – 1U |
| Feature Set | IP Lite |
| Uplink Interfaces | 4 x 1G SFP |
| Ports | 24 x 10/100/1000 (POE+) |
| Available PoE Power | 370W |
| Forwarding Bandwidth | 108Gbps |
| Maximum stacking number | 8 |
| Stack bandwidth | 80G |
| Switching Bandwidth | 216Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Dimensions (H x D x W) | 4.45 x 40.8 x 44.5 cm |
| Package Weight | 16.15 Kg |
