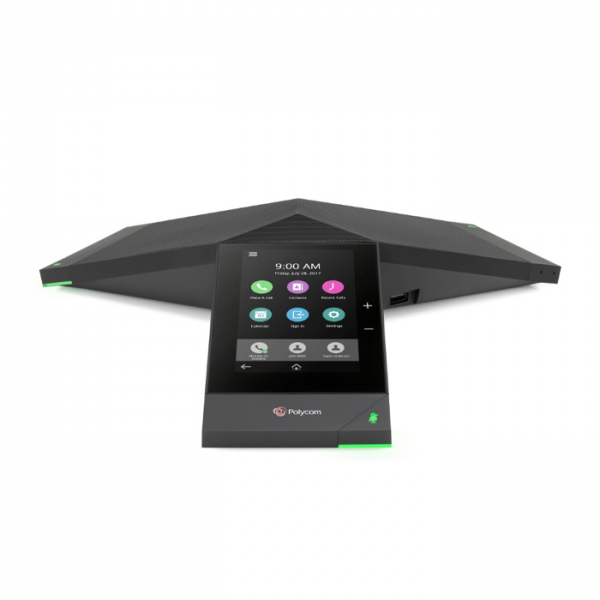

Poly Trio 8500

• USER INTERFACE FEATURES

  • Gesture-based, multitouch-capable capacitive touch screen
  • 5-inch color LCD (720 x 1280 pixel), 9:16 aspect ratio
  • On-screen virtual keyboard
  • 1x USB 2.0 Type A-compliant host port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation)
  • 1x USB 2.0 Micro-B device port
  • Integrated Bluetooth 4.0
  • 3 illuminated mute buttons
  • Unicode UTF-8-character support
  • User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

AUDIO FEATURES

• 3 cardioid microphones
• Loudspeaker
  • Frequency 180-14,000 Hz
  • Volume: 90 dB at 0.5m peak volume
• 14ft/4.3m microphone pickup range
• Supported codecs:
  • G.711 (A-law and μ-law)
  • G.722
  • Siren™ 7
• HD Voice™
• Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression— Type 1 compliant (IEEE 1329 full duplex)
• NoiseBlock™
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)
• Call handling features
• Up to 3 lines (max. 1 Skype for Business)
• Shared call/bridged line appearance
• Distinctive incoming call treatment/call waiting
• Call timer and call waiting
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected- party information
• Local five-way audio conferencing
• Daisy-chain up to three
• One-touch speed dial
• Do-not-disturb function
• Local configurable digit map/dial plan
• Corporate directory access using LDAP
• Visual conference management

NETWORK AND PROVISIONING

• Open SIP
• Skype for Business certified (conference phone only)
• Microsoft Teams certified (conference phone only)
• Zoom certified
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• Single-port gigabit Ethernet 10/100/1000Base-TX across LAN
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS server-based central provisioning
• Zero Touch Provisioning
• Provisioning and call server redundancy supported
• QoS Support
  • IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
• VLAN-CDP, DHCP VLAN discovery
• LLDP-MED for VLAN discovery

SECURITY

• FIPS 140-2 compliant cryptographic module
• 802.1X authentication and EAPOL
• Media encryption via SRTP
• Transport layer security (TLS v1.2)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables

POWER

• LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4)1. Backward compatibility with IEEE 802.3af
• Optional Power kit includes extended single-port gigabit midspan, 802.3at Type 2 compliant, local power cord and network cable (2200-66740-xxx)

APPROVALS

• Japan MIC/VCCI Class B
• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• CISPR22 Class B
• VCCI Class B
• EN61000-3-2; EN61000-3-3
• NZ Telepermit
• Australia RCM
• ROHS compliant
• Energy Star® compliant

RADIO

• US
  • FCC Part 15.247
• Canada
  • RSS 247 Issue 1
• EU
  • ETSI EN 300 328 v1.9.1
• Japan
  • Japan Item (19)
• Australia
  • AS/NZ4268

SAFETY

• UL 60950-1
• UL 62368-1
• CE Mark
• CAN/CSA-C22.2 No. 60950-1-03
• CAN/CSA C22.2 No. 62368-1-14EN 60950-1
• EN 60950-1
• EN 62368-1
• IEC 60950-1
• IEC 62368-1
• AS/NZS 60950-1
• AS/NZS 62368-1-17

ENVIRONMENTAL CONDITIONS

• Operating temperature: 0° to 40°C (+32° to 104°F)
• Relative humidity: 5% to 95% (non-condensing)
• Storage temperature: -20° to +70°C (-4° to +160°F)

ACCESSORIES (OPTIONAL)

• Trio 8500 Expansion Microphones (2200-65790-001)
• USB 2.0 Cable, 4ft/1.2m (2200-49307-002)

POLY TRIO 8500 SHIPS WITH:

• Open SIP Conference phone 2200-66700-025 OR Skype for Business or Microsoft Teams conference phone 2200-66700-019
• 7.6 m/25 ft network cable CAT 5e
• Cable wrap
• Tactile overlay for improved accessibility
• Setup sheet

PHONE DIMENSIONS (L X W X H)

• 35.6cm x 30.9cm x 7cm
