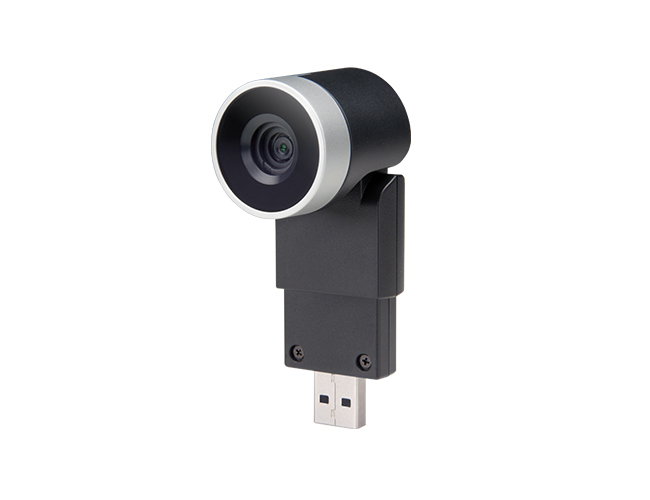

EagleEye Mini camera

• EAGLEEYE MINI FEATURES

  • Integrated privacy shutter
  • Mechanically adjustable tilt
  • Plug and Play setup
  • Uncompressed local video loopback
  • Normal, full, crop video screen modes
  • Adjustable levels and frame rate
  • Anti-flicker compensation
  • 2 color/4 state status LED

VIDEO STANDARDS

• H.264 AVC, H.264 high profile encoding
• H.264 SVC for Skype for Business encoding
• RGB and YUV raw video

BANDWIDTH

• 280 Mbps max transmit bitrat

CONTENT VIDEO RESOLUTION

• 24-bit true color
• Supports up to 1080p @ 30fps transmit video (H.264)
• Multicast video streams

CAMERA

• f/2.0 aperture
• 4 mega pixel sensor
• Vertical tilt angle adjustable from +6° (up) to –22° (down)
• 73.7° HFoV/ 82°DFoV
• Automatic exposure and white balance
• Autofocus, 8cm-infinity
• 4x electronic zoom (1.4x lossless)

COMPLEMENTS THESE AUDIO SOLUTIONS:

• VVX® 601 v 5.87.1 or above
• VVX® 501 v 5.8.1 or above
• Trio™ 8500* v 5.7.1 or above
• Trio™ 8800* v 5.7.1 or above
• RealPresence® Desktop for Windows® and Mac® v 3.9.0 or above
• VoxBox v 1.0.1 or above
• *Requires Polycom Trio™ Visual+

SUPPORTED VIDEO COMMUNICATION CLIENTS

• Polycom RealPresence Desktop
• BroadSoft UC-One Communicator
• Skype for Business (certified by Microsoft)
• Zoom

CAMERA FIRMWARE UPDATES

• The EagleEye Mini USB camera receives firmware updates through software updates for the connected VVX business media phone or Polycom Trio system.

INTERFACE

• USB 2.0 (UVC 1.5 and UVC 1.1 compliant)

POWER

• 5V @ <500mA via USB port

APPROVALS

• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55032 Class B
• CISPR32 Class B
• VCCI Class B
• EN55024
• EN61000-3-2; EN61000-3-3
• Korea KCC
• ROHS compliant
• Russia EAC
• Australia C Tick

OPERATING CONDITIONS

• Temperature: +32 to 104°F (0 to 40°C)
• Relative Humidity: 5% to 95%, noncondensing
