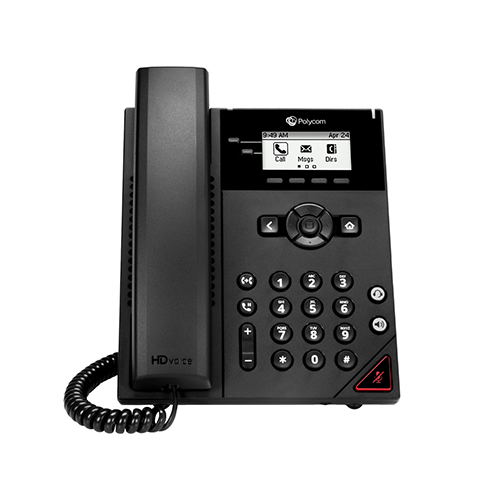

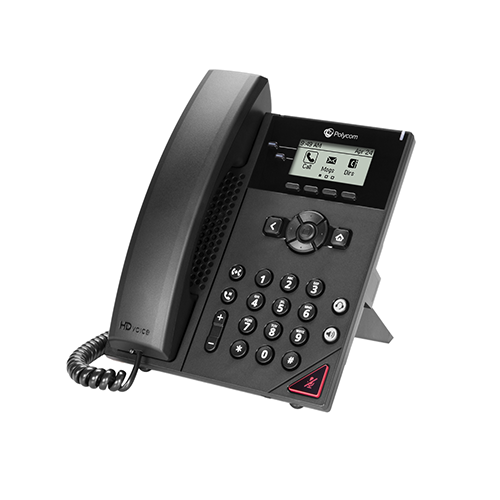

Polycom VVX 150

• USER INTERFACE FEATURES

  • 2.5” graphical backlit monochrome LCD (132×64 pixel resolution)
  • Voicemail support

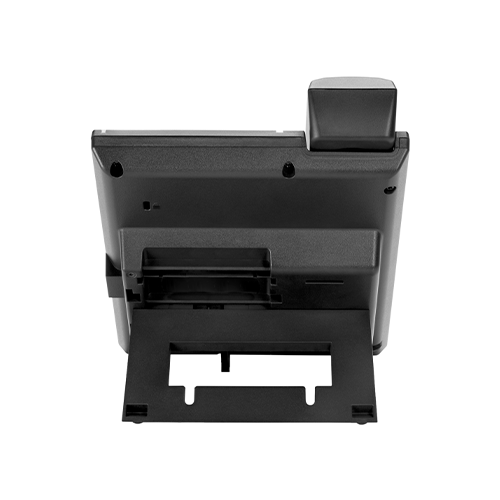

  • Reversible deskstand/wallmount
  • Unicode UTF-8 character support
  • Multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish

FEATURE KEYS

• 4 context-sensitive “soft” keys
• 2 line keys with bi-color (red/green) LED “Home” feature key
• 4-way navigation key cluster with center “Select” key
• 2 volume control keys
• Dedicated keys:
  • Back and Home
  • Hold and Transfer
  • Headset
  • Hands-free speakerphone
  • Microphone Mute

AUDIO FEATURES

• Acoustic Clarity™ technology providing full-duplex conversations, acoustic echo cancellation and background noise suppression
• TIA-920 Wideband Audio
• Type 1 compliant (IEEE 1329 full duplex)
• Frequency response—150 Hz—7 kHz for hands-free speakerphone, handset and optional headset mode
• Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), iLBC
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment

HEADSET AND HANDSET COMPATIBILITY

• Dedicated RJ-9 headset port
• Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
• Compliant with ADA Section 508 Subpart B 1194.23 (all)
• Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
• Compatible with commercially-available TTY adapter equipment

CALL HANDLING FEATURES

• 2 SIP identity (registration)/ 2 programmable line keys
• Shared call/bridged line appearance
• Flexible line appearance (one or two line keys can be assigned for each registration)
• Distinctive incoming call treatment/ call waiting
• Call timer and call waiting
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way audio conferencing
• One-touch speed dial, redial
• Remote missed call notification
• Do not disturb function
• Electronic hook switch capable
• Local configurable digit map/dial plan

OPEN APPLICATION PLATFORM

• Supports Apps SDK and API for third- party business and personal applications
• Bundled with UC Software:
  • Corporate Directory Access using LDAP
  • Visual Conference Management

NETWORK AND PROVISIONING

• SIP Protocol Support
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• Two-port Ethernet switch 10/100Base-TX across LAN and PC Ports
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/FTPS/TFTP/HTTP/HTTPS server based central provisioning for mass deployments
• Provisioning and call server redundancy supported
• QoS Support–IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
• VLAN—CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
• Network Address Translation (NAT)— support for static configuration and
• “Keep-Alive” SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• Hardware diagnostics
• Status and statistics reporting
• TCP
• UDP
• DNS-SRV
• IPv4 and IPv6

SECURITY

• 802.1X Authentication and EAPOL Media encryption via SRTP
• Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables

POWER

• Built-in auto sensing IEEE 802.3af Power over Ethernet Class 2, 5.0 W (Max)
• External Universal AC/DC Adapter (optional) 5VDC @ 3A (15W)
• ENERGY STAR® rated

APPROVALS

• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55032 Class B
• CISPR32 Class B
• VCCI Class B
• EN55024
• EN61000-3-2; EN61000-3-3
• NZ Telepermit
• Korea KCC ***
• UAE TRA
• Russia CU ***
• Brazil ANATEL ***
• Australia RCM
• South Africa ICASA ***
• Saudi Arabia CITC
• China CCC ***
• RoHS Compliant
• *** Planned compliance and localization

SAFETY

• UL 60950-1/62368-1
• CE Mark
• CAN/CSA C22.2 No 60950-1/62368-1-1
• EN 60950-1/62368-1
• IEC 60950-1/62368-1
• AS/NZS 60950-1

OPERATING CONDITIONS

• Temperature: 0 to 40°C (+32 to 104°F)
• Relative humidity: 5% to 95%, noncondensing

STORAGE TEMPERATURE

• -40 to +70° C (-40 to +160° F)

VVX® 150 COMES WITH

• Console
• Handset with handset cord
• Network (LAN) cable—CAT-5E
• Desk Stand/Wall Mount Bracket
• Setup Sheet
